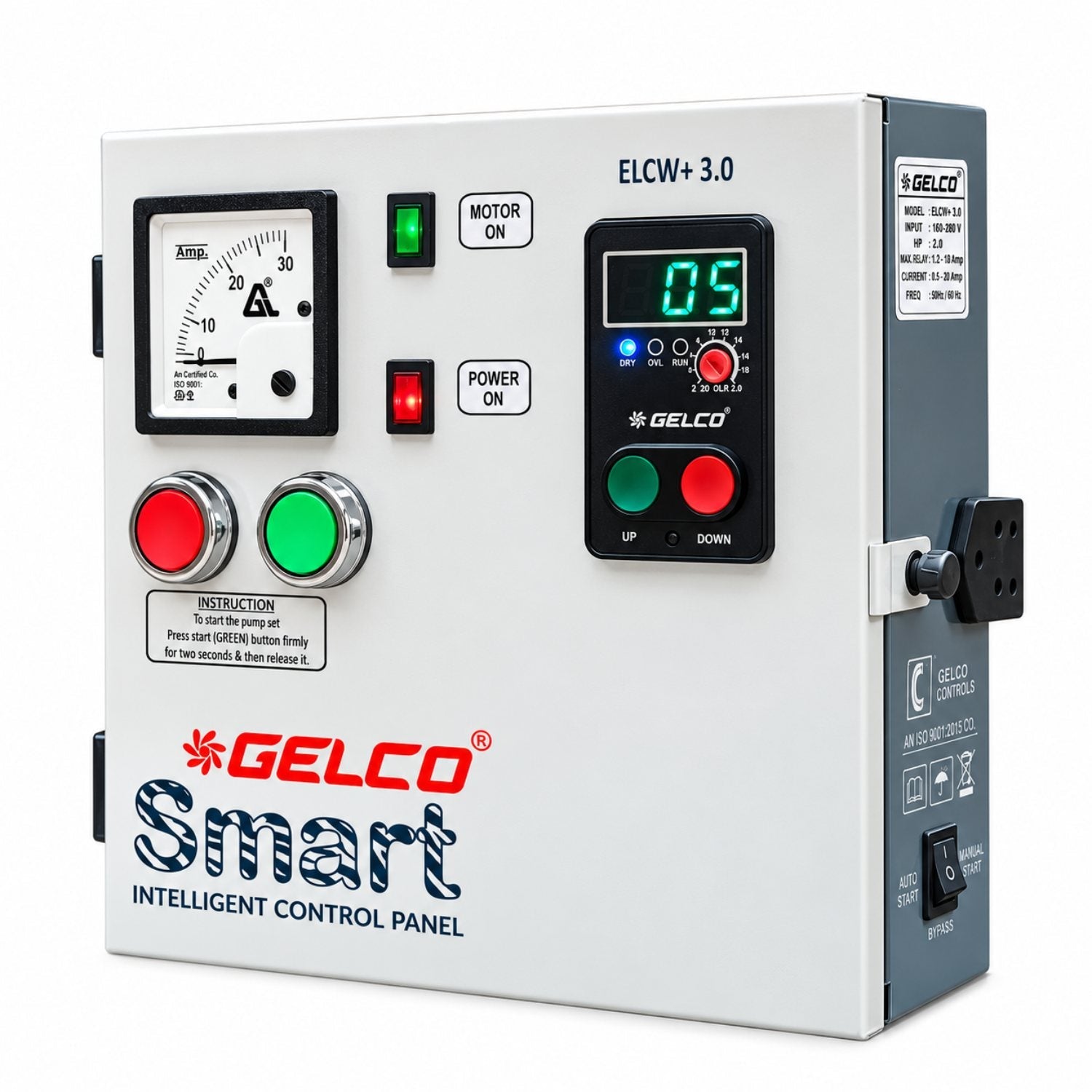

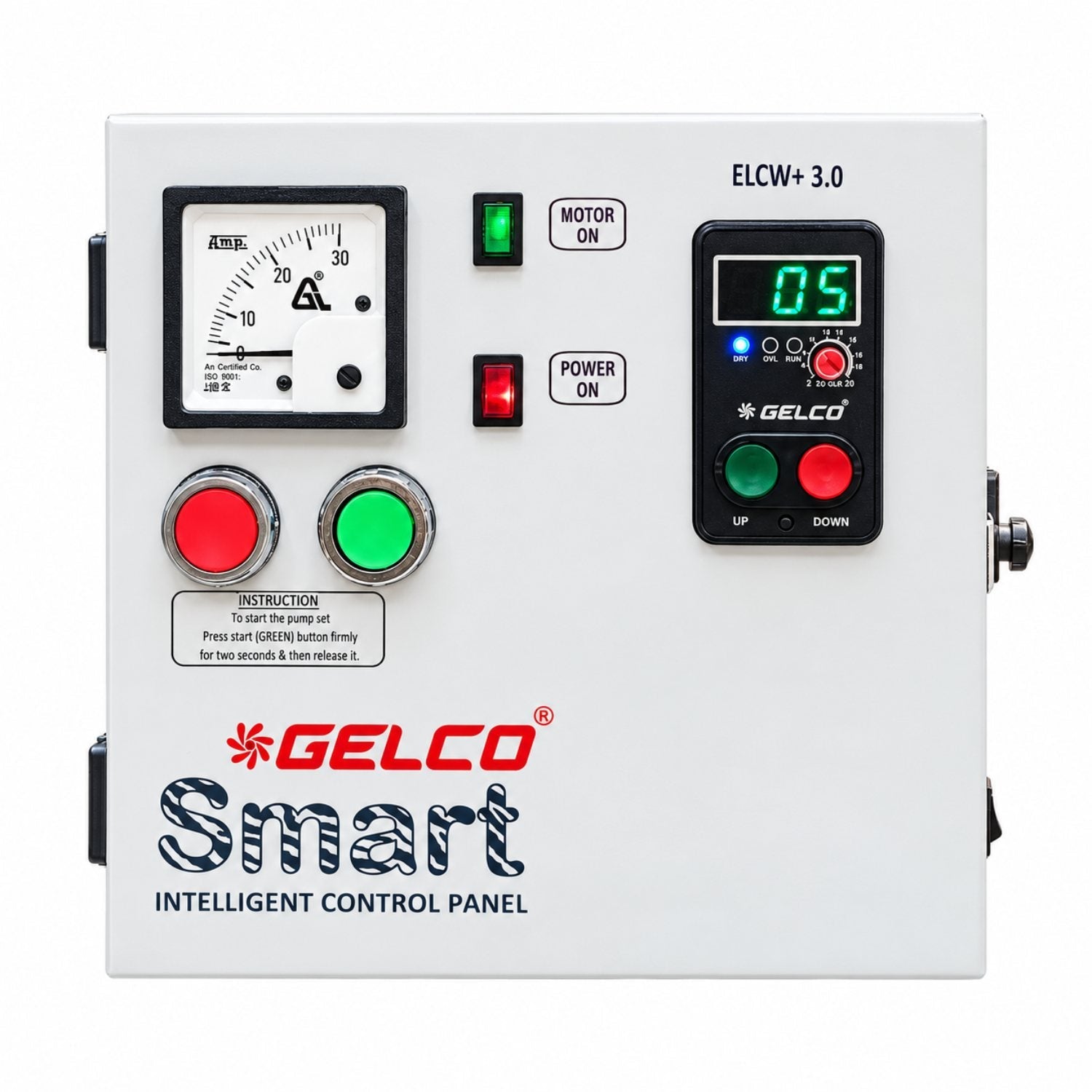

Gelco ELCW+3.0 - Easy Settable - Operates And Protects All Submersible And Mono-block Motors And Pumps, 230V, 50Hz

Application:

Operates and protects all submersible and mono-block motors and pumps, used for drawing water, at domestic, industrial, and agricultural levels.

Advantages:

• With normal water motors, one needs to be cautious of the available water, else it may cause overheating and damage the motor. Also, they need to be manually switched off and on. ELCW+ 3.0 provides protection against situations by automatically turning the motor off in case of lack of water.

• Also, it protects the motors from being overheated in situations like over usage, worn-out/defective equipment, and voltage fluctuation.

• In addition to that, there is a provision to display the details of the current flowing into the equipment. Whereas in case of other available starters, no such indication is available.


Technical Specs:

• Input supply: 230V, 50Hz

• Load capacity: 30Amp.(0.75 HP -3 HP)

• OverVoltage Protection:260V –280V (Settable)

• Low Voltage Protection: 160V –180V (Settable)

• Electronic Overload Protection: 4Amp –30Amp.(Settable)

• Electronic Dry-Run Protection: 0.01Amp –27Amp. (stable)

• OFF Time delay:(1 -240 Minutes)


Benefits

• Auto Phase Sequencing: India's first electronic starter with auto phase changing (RYB),& safeguards your motors and appliances from any electrical threat.

• Durable & Reliable: Built with high-quality components and rigorous testing for lasting performance.

• Cost-Effective Investment: Extend your motor's/appliance's life, minimize downtime, and save on repair costs with comprehensive protection.

• Auto Phase Changing Technology: No-Need to change phase if GEB changes after repair. So, More convenient.

• Oil-Cooled Starter Alternative: Enjoy a cleaner, safer, repairable nand more efficient solution compared to bulky oil-cooled starters.


Technical specifications:

• Working Voltage Range: 415V, 50Hz
• Over Voltage Protection: 460V –500V (Settable)
• Low Voltage Protection: 300V –350V (Settable)
• Electronic Overload Protection: 4Amp –20Amp.(Settable)
• Electronic Dry-Run Protection: 0.01Amp –18Amp. (Settable)
• For Motors: upto 7.5 H.P.
• For Appliances: 20 Amps
• Water Level Controlled Facility: LLC -001D
• Product Body: Powder Coated Sheet Metal Enclosure
