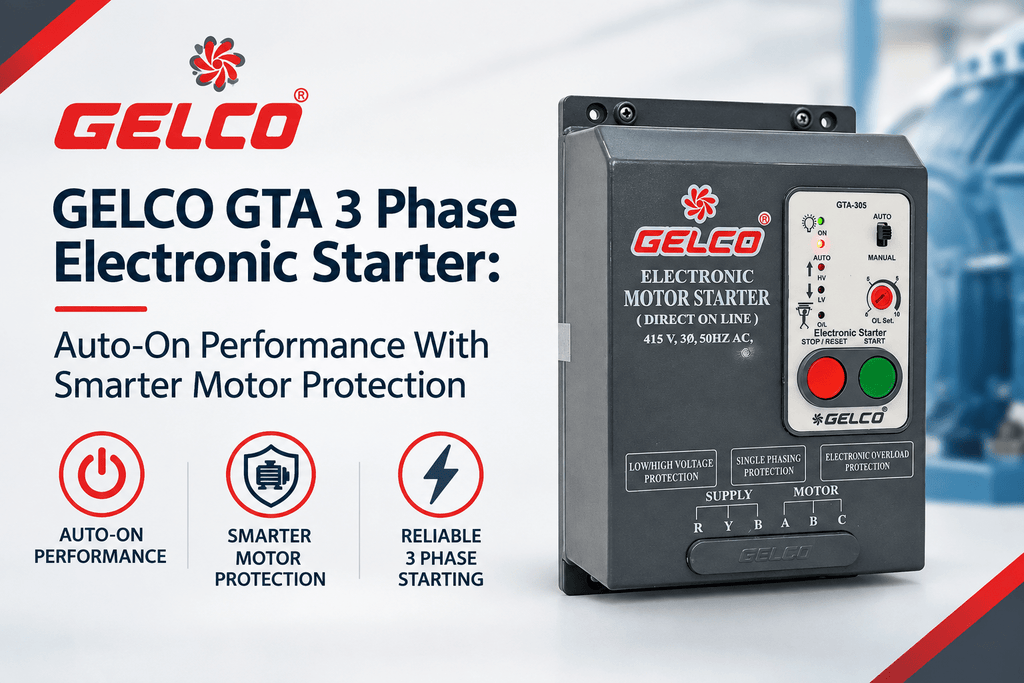

Gelco GTA 3 Phase Electronic Starter: Auto-On Performance With Smarter Motor Protection

For submersible pumps used in homes, agricultural applications, and commercial spaces, reliable motor protection is essential. Voltage fluctuations, phase failure, overloading, and continuous operation can put considerable stress on a motor and eventually lead to costly damage.

The GTA 3 Phase Electronic Starter by Gelco Electronics is designed to address these challenges with a combination of automatic operation and electronic protection. With its Auto-On facility and intelligent water-level monitoring, GTA makes pump operation more convenient while helping protect the motor from common electrical and operational problems.

Designed for Residential and Commercial Pumping Applications:

GTA is a three-phase DOL starter designed to operate different types of submersible pumps. Its versatility makes it suitable for residential as well as commercial applications where dependable water pumping is required.

The starter is available in three models—GTA 304, GTA 305, and GTA 306—allowing users to select the appropriate model according to the motor's output requirement. GTA 304 supports an output capacity of 2–5 Amp, GTA 305 supports 4–10 Amp, while GTA 306 supports 8–20 Amp.

Automatic Operation with Auto-On Facility:

One of the key highlights of the GTA is its automated operation. The system monitors water levels and automatically switches the pump ON or OFF according to the requirement. This makes everyday pump operation considerably easier, eliminating the need for users to manually monitor and operate the starter.

For applications where regular water-level management is required, this automation can provide greater convenience while reducing unnecessary motor operation.

Protection Against Phase Failure:

A three-phase motor can be seriously damaged when one phase is absent and the entire current is taken through the remaining two phases. Not every conventional DOL starter provides adequate protection in such a situation.

GTA is designed to protect the motor during such phase-failure conditions. By providing this additional layer of safety, it helps prevent excessive electrical stress and reduces the possibility of motor damage.

Protection from Voltage Fluctuations and Overloading:

Unstable voltage is a common concern for motor and pump users. Both low and high voltage conditions can affect motor performance and, if left unchecked, can contribute to overheating and premature failure.

The GTA provides protection against voltage fluctuations while also incorporating electronic overload protection. This helps safeguard the motor when it is subjected to excessive load, over-usage, or conditions that could otherwise cause the motor to burn out.

Time-Based Operation for Added Convenience:

GTA also incorporates an ON-time delay of approximately 45–60 seconds. This feature adds an additional layer of controlled operation and helps ensure that the motor does not start unnecessarily or immediately under unsuitable conditions.

Combined with its automated water-level monitoring, the time-based functionality makes GTA a practical choice for users looking for a more hands-free pumping solution.

A Compact Electronic Starter:

Despite its range of protection and automation features, the GTA has a compact design that makes it suitable for installations where space is limited. With a weight of approximately 1.237 kg and dimensions of 21 cm × 15 cm × 9.5 cm, it combines practical installation with reliable functionality.

Its electronic design brings together essential motor protection and automatic control in a single unit, making it a convenient upgrade from basic manual motor starters.

Technical Specifications:

• The GTA operates on a 415V, 50Hz input supply and has a load capacity of up to 20 Amp. It offers low-voltage protection above 330V and high-voltage protection below 480V, along with electronic overload protection in the range of 2–20 Amp.
• The starter also features an ON-time delay of 45–60 seconds. The GTA range includes three models: GTA 304 with 2–5 Amp output capacity, GTA 305 with 4–10 Amp output capacity, and GTA 306 with 8–20 Amp output capacity.
• With its compact dimensions of 21 cm in length, 15 cm in width, and 9.5 cm in height, the GTA weighs approximately 1.237 kg.

Why Choose the Gelco GTA?

The GTA is designed for users who want more than basic motor starting functionality. Its combination of automatic water-level monitoring, Auto-On operation, phase-failure protection, voltage protection, and electronic overload protection makes it a practical solution for modern submersible pump systems.

By reducing the need for manual operation and providing multiple layers of motor safety, GTA helps users operate their pumps with greater convenience and confidence.

Final Verdict

The Gelco GTA 3 Phase Electronic Starter brings together automation, motor protection, and ease of operation in a compact and affordable package. Whether installed for residential water pumping or commercial applications, it is designed to make submersible pump operation safer and more convenient.

Available at ₹3,699, with a 12-month warranty, 10-day replacement facility, free shipping, and direct purchase from the manufacturer, the GTA is a smart choice for anyone looking to upgrade to a more automated and protected three-phase pump starter.
