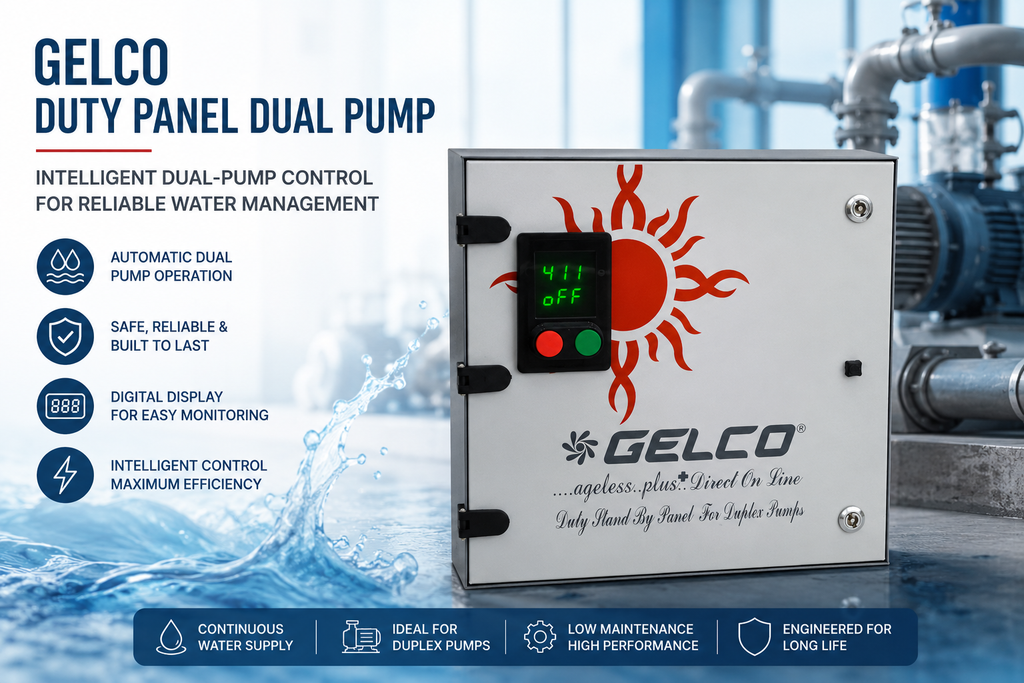

Gelco Duty Panel Dual Pump – Intelligent Dual-Pump Control For Reliable Water Management
Efficient water management is essential for large residential complexes, industrial facilities, agricultural operations, and commercial establishments. In applications where a single pump is not sufficient, dual-pump systems offer higher capacity, greater reliability, and uninterrupted water supply. However, managing two pumps manually can be inefficient and increase the risk of uneven wear, equipment failure, and unnecessary downtime.
The Gelco Duty Panel Dual Pump is designed to address these challenges by providing intelligent control, advanced motor protection, and automated operation for two submersible pumps. Built for demanding three-phase applications, this control panel ensures reliable performance while extending the lifespan of pumping equipment.
Designed for Large-Scale Water Pumping Applications
Unlike conventional starters that operate a single pump, the Duty Panel Dual Pump is specifically designed to control two submersible pumps or motors in alternate operation. By alternating between pumps, the system distributes operating hours evenly, reducing wear on individual motors and improving the overall lifespan of the pumping system.
Its versatility makes it suitable for a wide range of applications, including residential societies, apartment complexes, industrial facilities, agricultural irrigation systems, farmhouses, bungalows, and other large-scale water supply installations where continuous and dependable operation is essential.
Comprehensive Protection for Your Pumping System
Electrical faults remain one of the leading causes of pump failure. Voltage fluctuations, overload conditions, dry running, and phase loss can all result in overheating, motor damage, and costly repairs.
The Gelco Duty Panel Dual Pump incorporates multiple layers of intelligent protection to safeguard both pumps. It protects against high and low voltage conditions, prevents motor damage caused by overload or prolonged operation, and safeguards equipment from overheating due to worn-out or faulty pumps. The panel also provides advanced protection against dry-run conditions, automatically shutting down the motor when insufficient water is available, helping prevent unnecessary wear and motor burnout.
Another key advantage is its ability to detect single phasing and voltage imbalance. Unlike standard DOL starters, which may continue operating even when one phase is missing, the Duty Panel immediately responds to abnormal three-phase conditions, significantly reducing the risk of motor failure.
Smart Automation for Efficient Operation
One of the standout features of the Duty Panel Dual Pump is its intelligent automation capabilities. The panel supports time-based automatic operation, allowing users to configure ON and OFF delays between one and 240 minutes to match operational requirements. Its cyclic timer further enhances efficiency by automating repetitive pumping cycles without manual intervention.
The integrated water-level monitoring system adds another layer of convenience by automatically switching pumps ON or OFF as required. This prevents water tank overflows, avoids unnecessary pump operation, and ensures an uninterrupted water supply while conserving both energy and water.
Real-Time Digital Monitoring
Unlike conventional systems that require separate analogue meters, the Duty Panel Dual Pump features an integrated digital display that provides accurate information about the current flowing through the equipment. Real-time monitoring allows operators to quickly identify abnormal operating conditions, monitor pump performance, and make informed maintenance decisions before small issues become costly failures.
Technical Specifications
The Gelco Duty Panel Dual Pump operates on a 415V, 50Hz three-phase input supply and supports a load capacity of up to 80A, making it suitable for motors ranging from 1 HP to 200 HP. The panel features settable low voltage protection between 300V and 350V and high voltage protection between 460V and 500V, allowing users to configure protection based on site conditions.
Its electronic overload protection is adjustable from 2A to 80A, while electronic dry-run protection can be configured from 0.01A to 72A for accurate motor safeguarding. Additional features include programmable ON/OFF time delays from 1 to 240 minutes and an integrated cyclic timer for automated pump scheduling.
The control panel measures 40 cm in length, 39 cm in width, and 18 cm in height, offering a robust enclosure suitable for demanding industrial and agricultural environments.
Additional Benefits
Beyond its advanced protection and automation features, the Duty Panel Dual Pump offers several customer-focused advantages. Every unit comes with a 12-month manufacturer's warranty, providing confidence in long-term performance. Customers also benefit from a 10-day replacement policy, ensuring prompt support if required. Purchasing directly from Gelco Electronics guarantees genuine products backed by manufacturer support, while free shipping makes ownership even more convenient.
Final Verdict
The Gelco Duty Panel Dual Pump is an ideal solution for applications requiring dependable operation of dual submersible pumps. By combining alternate pump operation, intelligent automation, comprehensive electrical protection, and real-time digital monitoring, it delivers significantly greater reliability than conventional motor starters.
Whether installed in a residential society, industrial facility, commercial building, or agricultural irrigation system, the Duty Panel Dual Pump helps minimize equipment downtime, reduce maintenance costs, optimize water management, and extend pump life. For users seeking a smart, automated, and highly reliable dual-pump control solution, Gelco's Duty Panel Dual Pump is a powerful investment in operational efficiency and long-term performance.
